UB2000-30GM-E5-V15 超声波传感器现货供应

UB2000-30GM-E5-V15 超声波传感器现货供应

       超声波传感器UB2000-30GM-E5-V15，可以设置5种不同的输出功能，弗熙堡从事自动化产品经销多年，一切从客户实际需求出发，备有大量现货，竭诚为您服务，您值得选择！021-51601058

好评系数：

立即询价 UB2000-30GM-E5-V15 超声波传感器现货供应

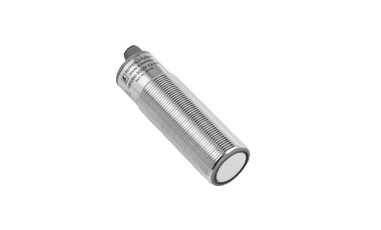

倍加福超声波传感器UB2000-30GM-E5-V15现货供应
UB2000-30GM-E5-V15
产品特性
       ▷ 开关量输出
       ▷ 可以设置5种不同的输出功能
       ▷ 程序输入
       ▷ 同步选项
       ▷ 停用选项
       ▷ 温度补偿
       ▷ 对压缩空气不敏感

产品介绍
Single head system
General specifications
Sensing range 80 ... 2000 mm
Adjustment range 120 ... 2000 mm
Dead band 0 ... 80 mm
Standard target plate 100 mm x 100 mm
Transducer frequency approx. 180 kHz
Response delay approx. 150 ms
Indicators/operating means
LED green solid: Power-on
flashing: program function object detected
LED yellow solid: switching state switch output
flashing: program function
LED red normal operation: "fault"
program function: no object detected
Electrical specifications
Operating voltage 10 ... 30 V DC , ripple 10 %SS
No-load supply current ≤ 50 mA
Input/Output
Synchronization bi-directional
0 level -UB...+1 V
1 level: +4 V...+UB
input impedance: > 12 KOhm
synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms
Synchronization frequency
  Common mode operation max. 30 Hz
  Multiplex operation ≤ 30 Hz / n , n = number of sensors , n ≤ 5
Input
Input type 1 program input,
operating range 1: -UB ... +1 V, operating range 2: +4 V ... +UB
input impedance: > 4.7 kΩ; program pulse: ≥ 1 s
Output
Output type 1 switch output PNP , Normally open/closed , programmable
Rated operating current 200 mA , short-circuit/overload protected
Voltage drop ≤ 2.5 V
Repeat accuracy ≤ 0.5 % of switching point
Switching frequency ≤ 3.3 Hz
Range hysteresis 1 % of the set operating distance
Temperature influence < 2 % of far switch point
Compliance with standards and directives
Standard conformity
  Standards EN 60947-5-2:2007+A1:2012
IEC 60947-5-2:2007 + A1:2012
Approvals and certificates
EAC conformity TR CU 020/2011
TR CU 037/2016
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type Connector plug M12 x 1 , 5-pin
Degree of protection IP65
Material
  Housing nickel plated brass; plastic components: PBT
  Transducer epoxy resin/hollow glass sphere mixture; polyurethane foam
Mass 140 g
Factory settings
Output Switch point A1: 220 mm
Switch point A2: 2100 mm
output function: Window mode
output behavior: NO contact
